Sample: Available For Test
Service: 10 Years Warranty
Support: OEM, ODM, OBM, Customized
Certificates: CE, UL, MSDS, IEC, UN38.3, ISO, etc.
We develop lithium batteries covering home storage, low-speed vehicles, industrial UAVs and portable power stations to meet multi-scenario energy demands.
Hubei Annait is a one-stop lithium battery maker offering OEM&ODM, supplying certified storage, EV, drone and portable power batteries to global clients.
| Model | AT-G51200P |
| Product Specification | 51.2V 200Ah |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Battery Energy | 10240Wh |
| Charging Current | Recommend/40A; Max./100A |
| Discharging Current | Recommend/100A; Max./200A; Peak/250A(3S) |
| Discharging Cut-off Voltage | 44.8V± 0.2V |
| Charging Cut-off Voltage | 57.6V± 0.2V |
| Weight | ≈80Kg |
| Dimensions(L*W*H) | 540(600)*360(410)*265mm |
| Cell Type | LiFePO4 Battery |
| Terminal | M8 screw / Anderson(Supportcustomization) |
| Case Material | Metal Box |
| Communication Mode | RS485 or BT (Optional) |
| Depth of Discharge | 95 |
| Working Temperature | 0°C~50°C Charge /-10°C~50°C Discharge |
| The Shelf Temperature | -20°C~60°C |
| Humidity | 5~95%(RH) |
| Design Life Cycle | 10+ Years(25°C/77°F) |
| Assembly Method | M10 screw / Battery Compartment |
This 51.2V / 48V 200Ah lithium iron phosphate battery is used for golf carts and can provide 10.24kWh of energy for the vehicle. Its model number is AT-G51200P.Golf Cart Lifepo4 Battery Support OEM & ODM & Custom
Golf carts on the course need to move frequently, so they have certain requirements for batteries, such as high capacity, low self-discharge rate, certain temperature resistance, good safety performance, and fast charging speed.

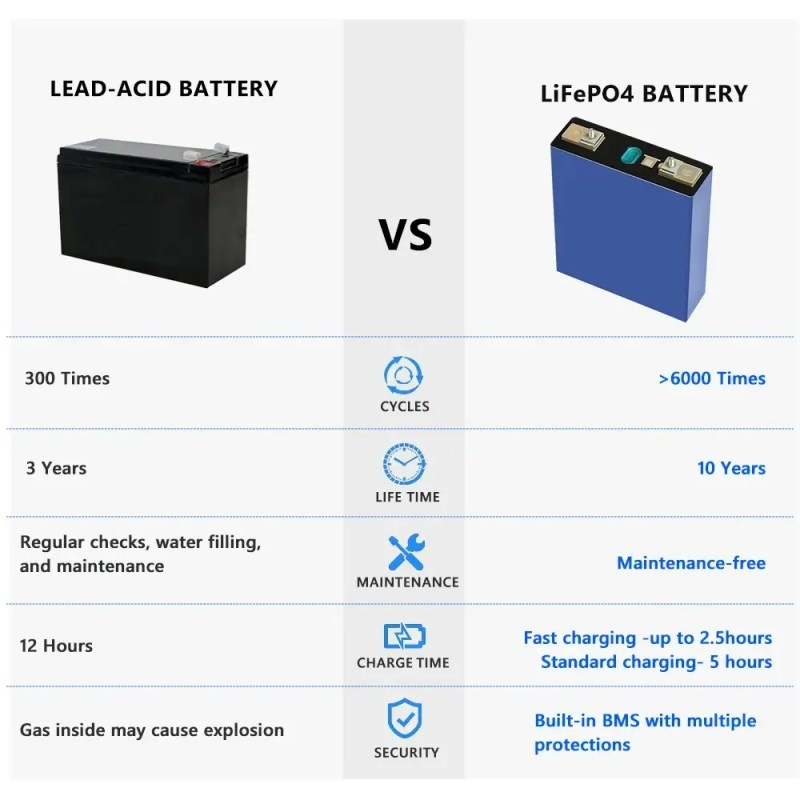

In the past, lead-acid batteries were the main power source for golf carts, but now they have gradually been replaced by lithium iron phosphate batteries belong to lithium-ion batteries for the following reasons:
The positive electrode material of a lifepo4 battery is lithium iron phosphate, which is chemically stable, has higher safety performance than lead-acid batteries, and is less likely to have problems.
The lifepo4 battery has a longer lifespan. For example, the service life of AT-G51200P is around 12 years, and it can complete 6500 charge and discharge cycles, far exceeding the 300 to 500 cycles of lead-acid batteries.
The lifepo4 battery is lightweight, about one-third of the weight of lead-acid batteries, making it convenient to carry and suitable for use with golf carts that need to move frequently.
Golf carts need to move outdoors for long periods, experiencing high and low temperatures. The charge and discharge temperature of the AT-G51200P 51.2V / 48V 200Ah lifepo4 battery is between -5 and 55 degrees Celsius, ensuring good performance throughout the year.

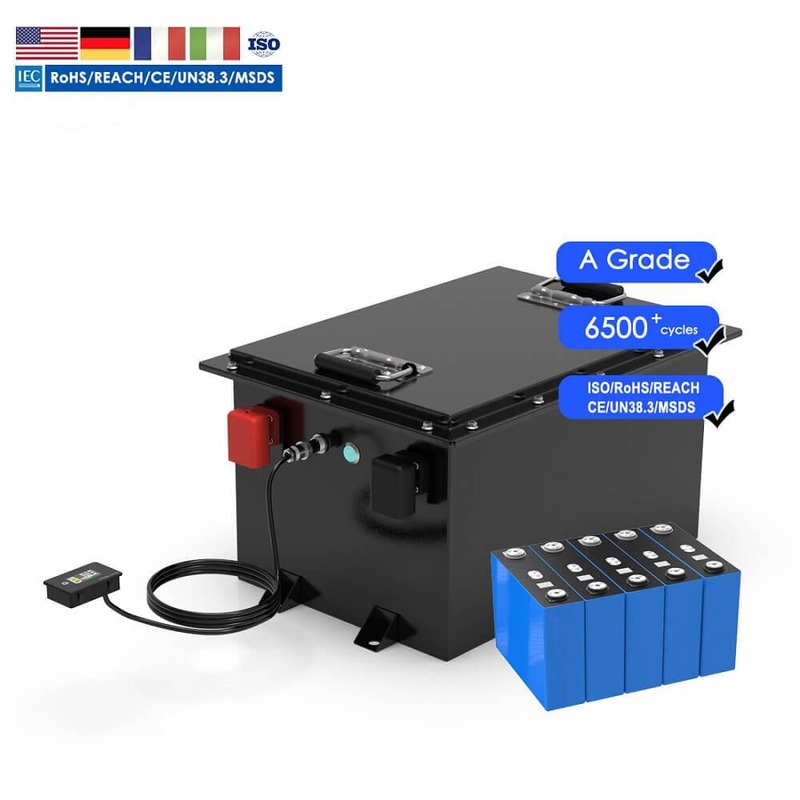

Besides using A-grade lithium iron phosphate cells, this 48V battery for golf carts also incorporates advanced BMS (Battery Management System). The BMS provides multiple protections for the battery, preventing overcharging, over-discharging, overvoltage, overcurrent, overheating, and short circuits.
This 48V 200Ah lithium iron phosphate battery for golf carts supports Bluetooth connection, allowing you to control it directly from your phone.
Not only for golf carts, you can also use the 51.2V 200Ah lithium iron phosphate battery in equipment such as AGVs, forklifts, electric boats, and other devices that require power. Of course, if you need customized services, specific battery dimensions, voltage, current, operating temperature, appearance, and other information can be provided. Annaite will have professional engineers to provide you with battery solutions.
Batteries perfectly fit hybrid solar inverter household systems.
Lightweight 48V packs for low-speed transport vehicles.
Safe semi-solid cells for industrial aerial operations.
All-in-one kits for off-grid outdoor power supply.
Please leave your contact information so we can get in touch with you andhelp you find a solution that suits you.
