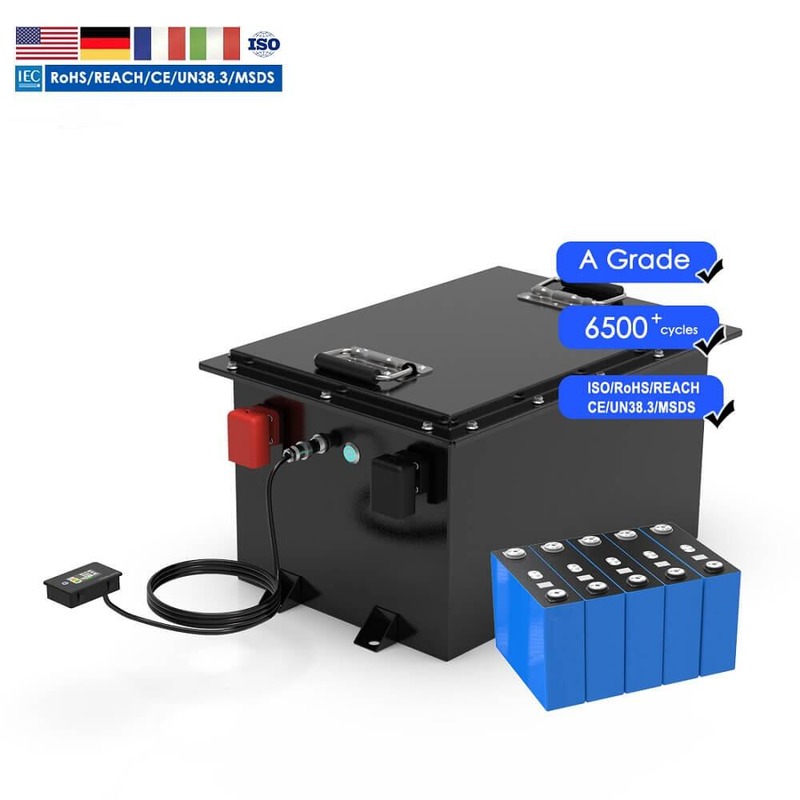

51.2V / 48V 105Ah Lithium Battery For Golf Cart
Sample: Available For Test
Service: 10 Years Warranty
Support: OEM, ODM, OBM, Customized
Certificates: CE, UL, MSDS, IEC, UN38.3, ISO, etc.
We develop lithium batteries covering home storage, low-speed vehicles, industrial UAVs and portable power stations to meet multi-scenario energy demands.
Hubei Annait is a one-stop lithium battery maker offering OEM&ODM, supplying certified storage, EV, drone and portable power batteries to global clients.
| Model | AT48105 |
| Product Specification | 51.2V 105Ah |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 105Ah |
| Battery Energy | 5376Wh |
| Charging Current | Recommend/20A; Max./50A |
| Discharging Current | Recommend/100A; Max./150A; Peak/200A(3S) |
| Discharging Cut-off Voltage | 44.8V± 0.2V |
| Charging Cut-off Voltage | 57.6V± 0.2V |
| Weight | ≈45Kg |
| Dimensions(L*W*H) | 410(470)*284(334)*247mm |
| Cell Type | LiFePO4 Battery |
| Terminal | M8 screw / Anderson(Supportcustomization) |
| Case Material | Metal Box |
| Communication Mode | RS485 or BT (Optional) |
| Depth of Discharge | 95 |
| Working Temperature | 0°C~50°C Charge /-10°C~50°C Discharge |
| The Shelf Temperature | -20°C~60°C |
| Humidity | 5~95%(RH) |
| Design Life Cycle | 10+ Years(25°C/77°F) |
| Assembly Method | M10 screw / Battery Compartment |

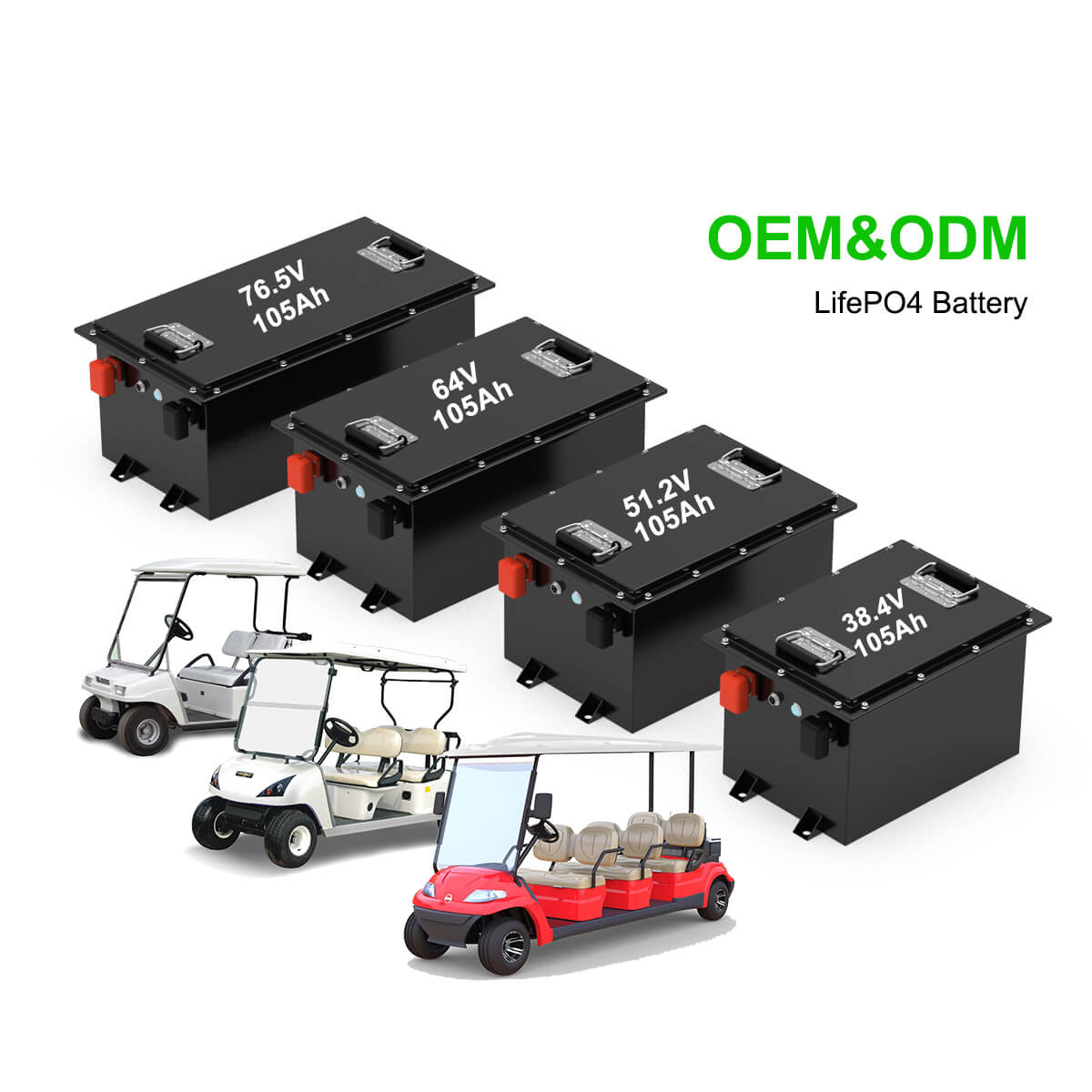

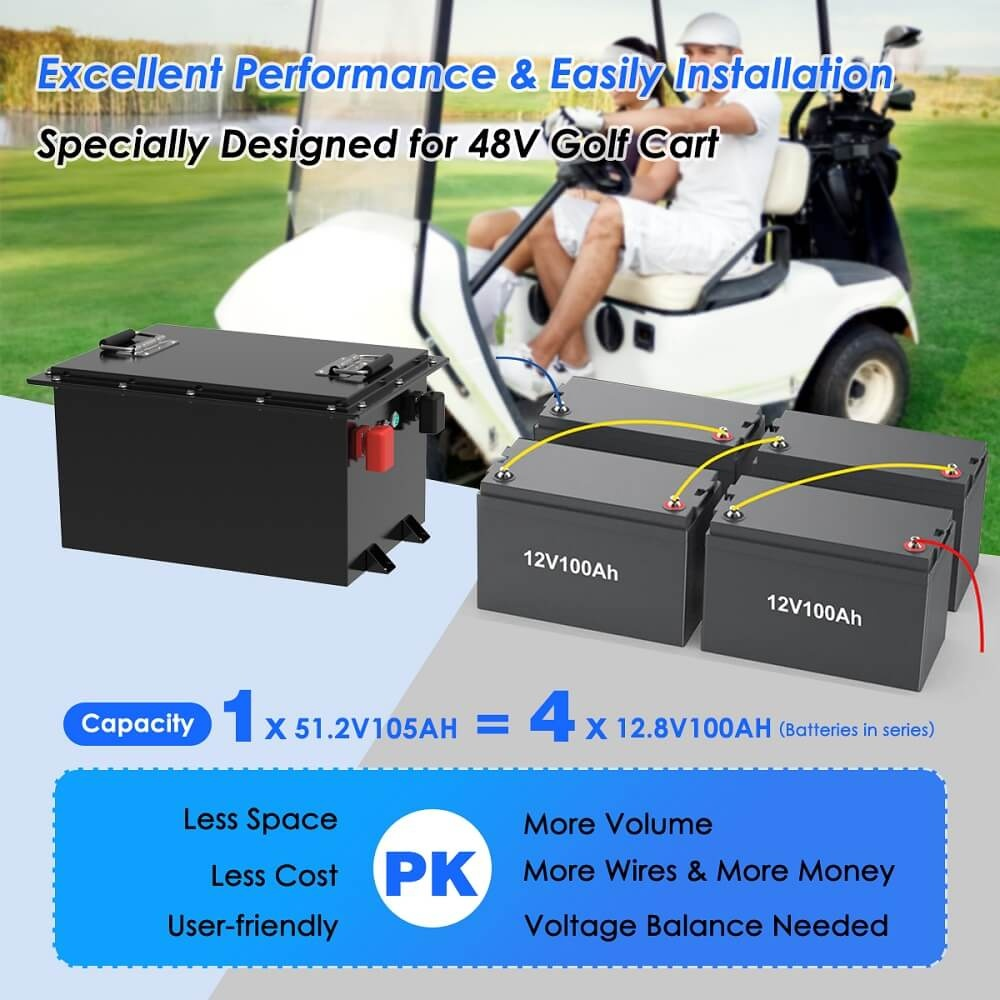

The 51.2V 105Ah lithium battery is specifically designed as a starter power source for 48V golf carts, and it can provide your vehicle with 5376Wh of energy. So, what are the advantages of the 51.2V 105Ah lithium battery?
ADVANTAGES OF THE 48V 105AH LITHIUM BATTERY
Extended Range:
With a fully charged 51.2V 105Ah lithium battery, the golf cart can travel 40-50 miles on the course, allowing you to fully enjoy the pleasure of the game.
Short Charging Time:
This is a refined lithium iron phosphate battery, designed to minimize charging time for users. It can be charged from 0 to 100% in just 3-4 hours.
Maintenance-Free:
The greatest difference between lithium batteries and lead-acid batteries is that lithium batteries require minimal maintenance. For instance, there’s no need to water them or pay excessive attention to their installation orientation, saving you a considerable amount of time.
Compact and Lightweight:
Lithium batteries have a much higher energy density than lead-acid batteries, which makes them both smaller in size and lighter in weight. They can provide power to vehicles without burdening them with additional heft.

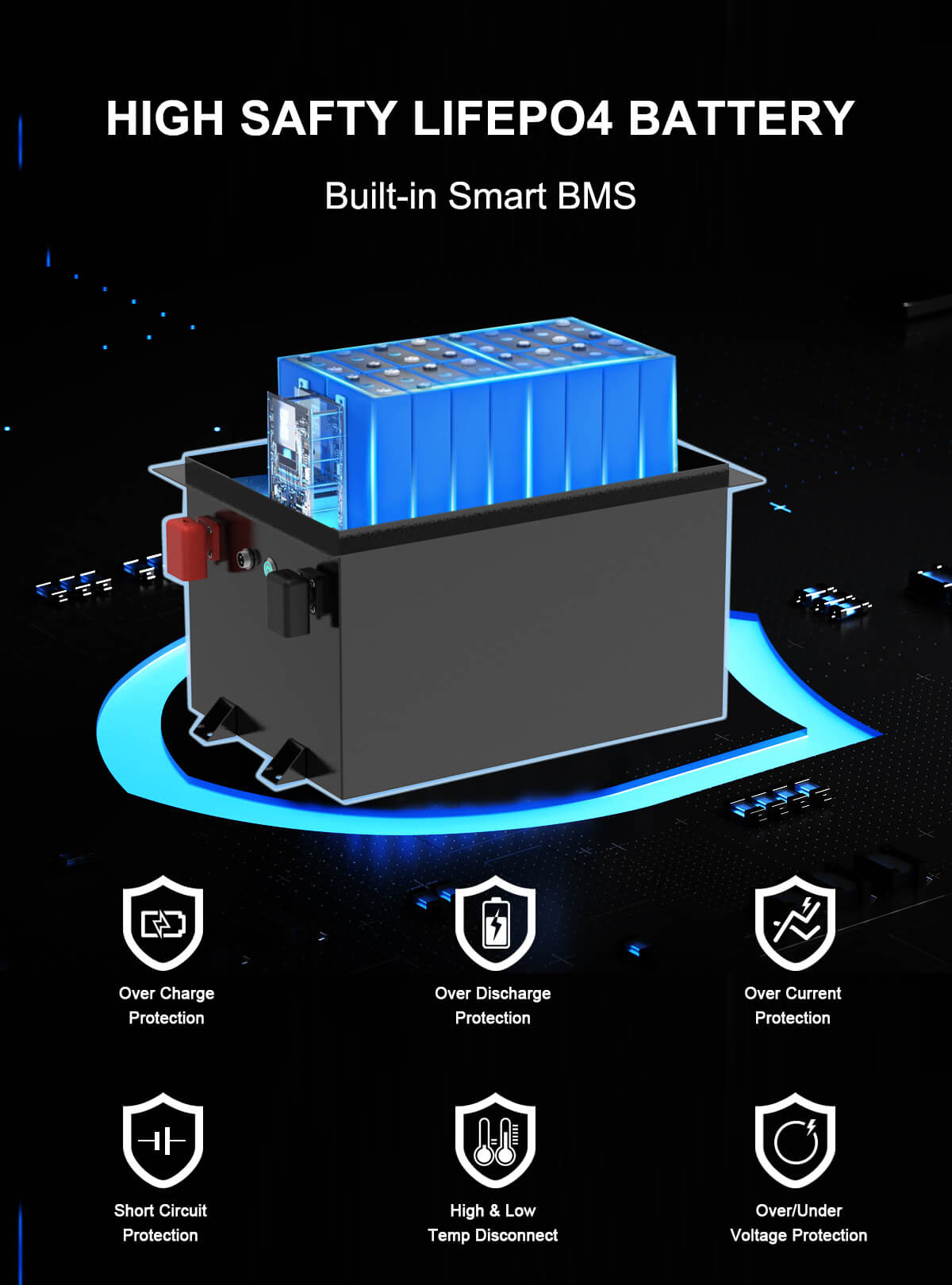

Built-In Safety System:
Lithium batteries must include a Battery Management System (BMS), as it offers significant safety assurance. For example, the BMS can protect the battery from damage and extend its lifespan by managing situations like overcharging, deep discharging, overvoltage, overcurrent, short-circuiting, and extreme temperatures.

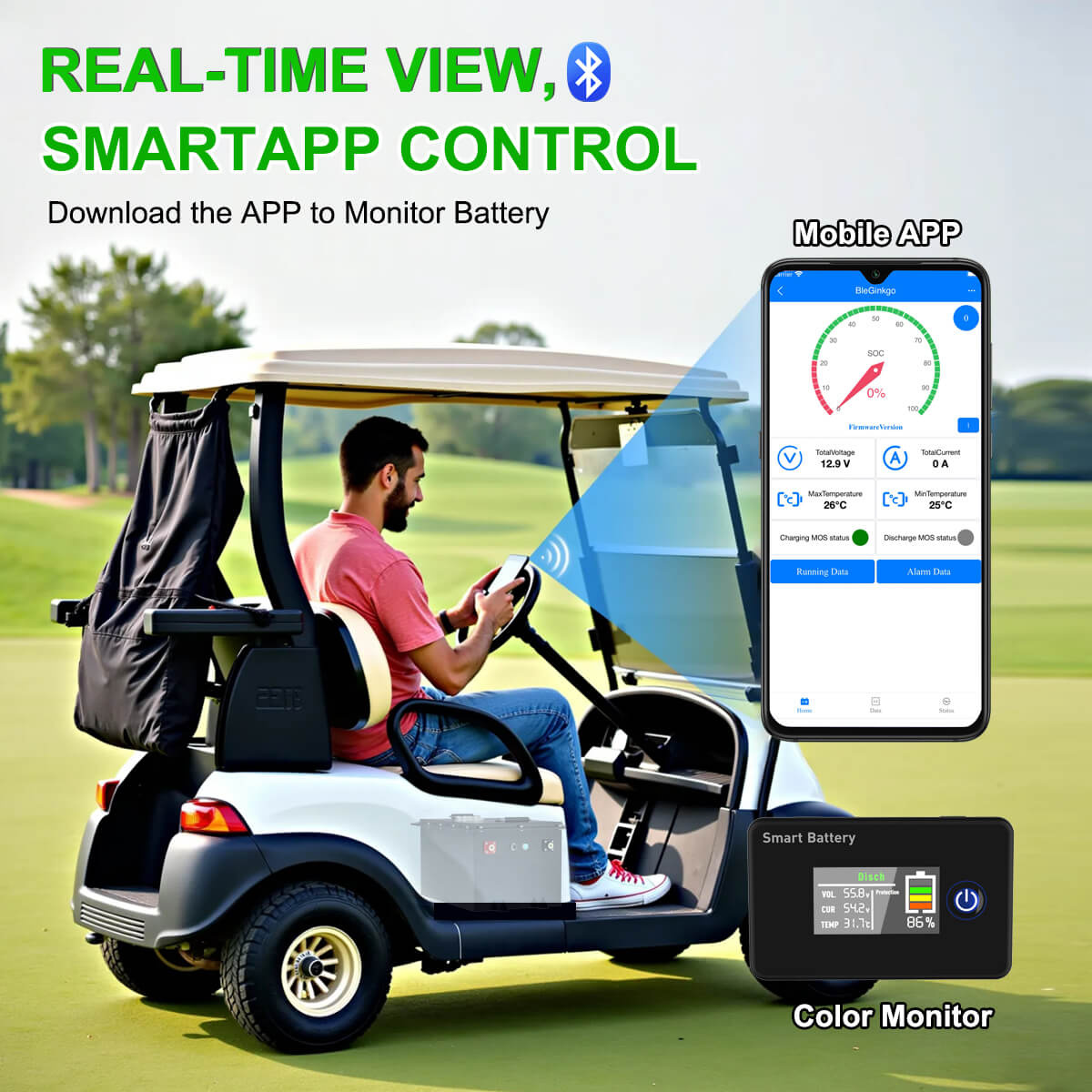

In addition, Our’s golf cart lithium batteries also provide Bluetooth functionality, making it convenient for you to monitor the battery’s status on your smartphone, which facilitates your daily use. Moreover, the addition of an LED color screen allows you to understand the battery’s information in real-time, which is also highly convenient.
Batteries perfectly fit hybrid solar inverter household systems.
Lightweight 48V packs for low-speed transport vehicles.
Safe semi-solid cells for industrial aerial operations.
All-in-one kits for off-grid outdoor power supply.
