Model: KHY 8000/11000/12000TL-48PTG
Battery Type: 48V
Type: Hybrid Inverter
Inverter Power: 8000-12000W
Output Voltage: 230V
Certificate: TUV, ETL, ISO, CE
We develop lithium batteries covering home storage, low-speed vehicles, industrial UAVs and portable power stations to meet multi-scenario energy demands.
Hubei Annait is a one-stop lithium battery maker offering OEM&ODM, supplying certified storage, EV, drone and portable power batteries to global clients.
Product Parameters
| Model | AT-8000TL | AT 11000TL | AT-12000TL |
| PARALLEL MODE | |||
| Pemitted parallel numbe | NO/1-6 | ||
| AC MODE | |||
| Rated input voltage | 230Vac±5% | ||
| Input voltage range | (170Vac~280Vac)±2%@UPS;(90Vac-280Vac)±2%@APL | ||
| Frequency | 50Hz/60Hz(Auto detection) | ||
| Frequency Range | 47±0.3Hz~55±0.3Hz(50Hz);57±0.3Hz~65±0.3Hz(60Hz) | ||
| Overload/short circuit protection | Circuit breaker | ||
| Efficiency | >95% | ||
| Conversion time (bypass and inverter) | 10ms(typica) | ||
| AC reverse protection | Yes | ||
| Maximum bypass overload current | 60A | ||
| INVERTER MODE | |||
| Output voltage wavefom | Pure sine wave | ||
| Rated output power(VA) | 8000 | 11000 | 12000 |
| Rated output power(W) | 8000 | 11000 | 12000 |
| Power factor | 1 | ||
| Rated output voltage(Vac) | 230Vac | ||
| Output voltage eror | ±5% | ||
| Output frequency range(Hz) | 50Hz±0.3Hz/60Hz±0.3Hz | ||
| Maximum Efficiency | >93% | ||
| Overload protection | 102% | ||
| 125% | |||
| Load >150%±10%:report error and turn off the output after 5 seconds; | |||
| Peak power | 16000VA | 22000VA | 24000VA |
| Loaded motor capability | 5HP | 7HP | 8HP |
| Output short circuit protection | Circuit breake | ||
| Bypass circuit breaker specification | 63A | ||
| Rated battery input voltage | 48V(Minimum starting voltage 44V) | ||
| Battery voltage range | 40.0Vdc~60Vdc±0.6Vdc(Undervoltage alarm/shutdown voltage/overvoltage alarm/ | ||
| overvoltage recovery…settable on LCD screen) | |||
| Power saving mode self-consumption | Load≤50W | ||
| AC CHARGING | |||
| Battery type | Lead acid or lithium battery | ||
| Maximum charge current(can be set) | 120A | 150A | 150A |
| Charge current error | ±5Adc | ||
| Charge voltage range | 40-60Vdc | ||
| Short circuit protection | Circuit breaker and blown fuse | ||
| Circuit breaker specifications | 63A | ||
| PV CHARGING | |||
| Maximum PVopen circuit voltage | 500Vdc | ||
| PVoperating voltage range | 120-500Vdc | ||
| MPPT voltage range | 90-450Vdc | ||
| Battery voltage range | 40-60Vdc | ||
| Maximum PVinput power | 5500W+5500W | 6000W+6000w | |
| Maximum PVinput current | 22A+22A | ||
| PV charging current range(can be set) | 0-150A | ||
| Charging short circuit protection | Blown fuse | ||
| Wining protection | Reverse polarity protection | ||
| HYBRID CHARGING MAX CHARGER CURRENTSPECIFICATIONS(AC CHARGER+PV CHARGER) | |||
| Max charger current(can be set) | 0-150A | ||
| CERTIFIED SPECIFICATIONS | |||
| Certification | CE(IEC62109-1,2) | ||
| EMC certification level | EN61000,C2 | ||
| Operating temperature range | -10℃ to 55℃,>45℃ drop runs | ||
| Storage temperature range | -25℃~55℃ | ||
| Humidity range | 5% to 95%(Conformal coating protection) | ||
| Noise | ≤60dB | ||
| Heat dissipation | Forced air cooling,variable speed of fan | ||
| Communication interface | USB/RS485(/WiFi/GPRS)/Dry node control | ||
| Size(L*W*D) | 540mm*350mm*120mm | ||
| Weight (kg) | 19.5 | ||

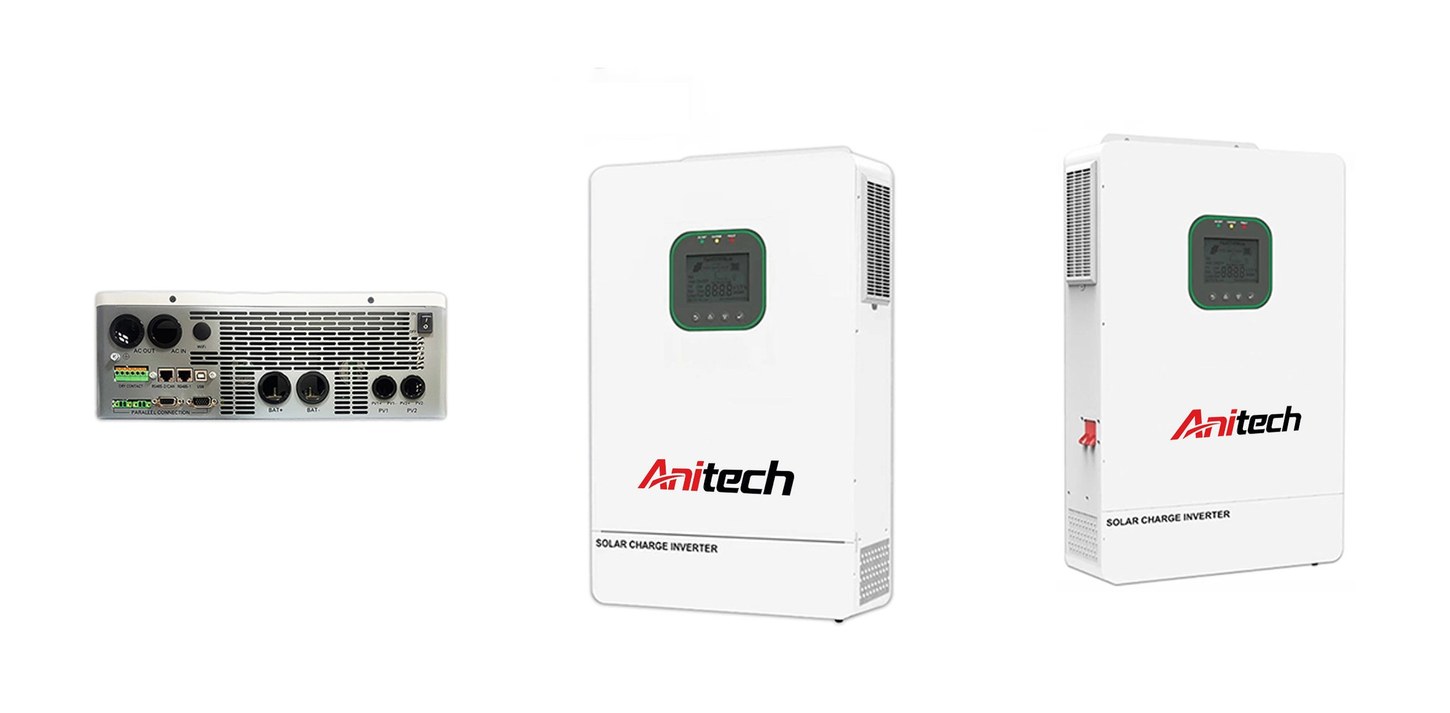

Product Details

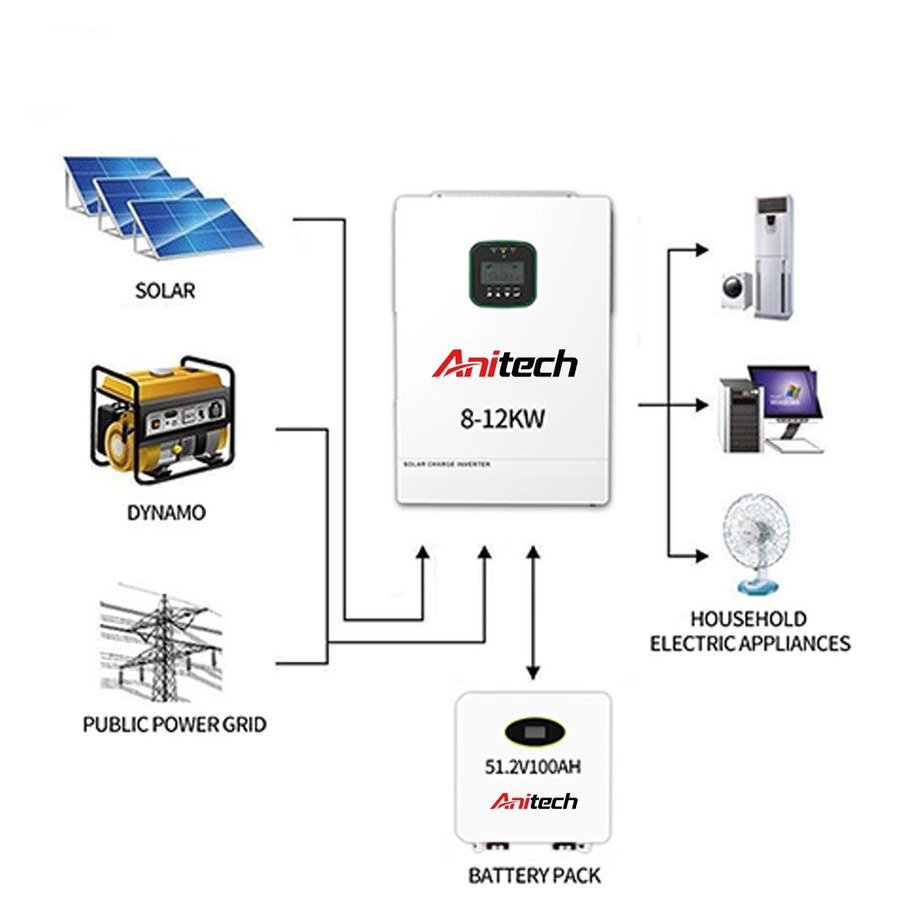

Batteries perfectly fit hybrid solar inverter household systems.
Lightweight 48V packs for low-speed transport vehicles.
Safe semi-solid cells for industrial aerial operations.
All-in-one kits for off-grid outdoor power supply.
