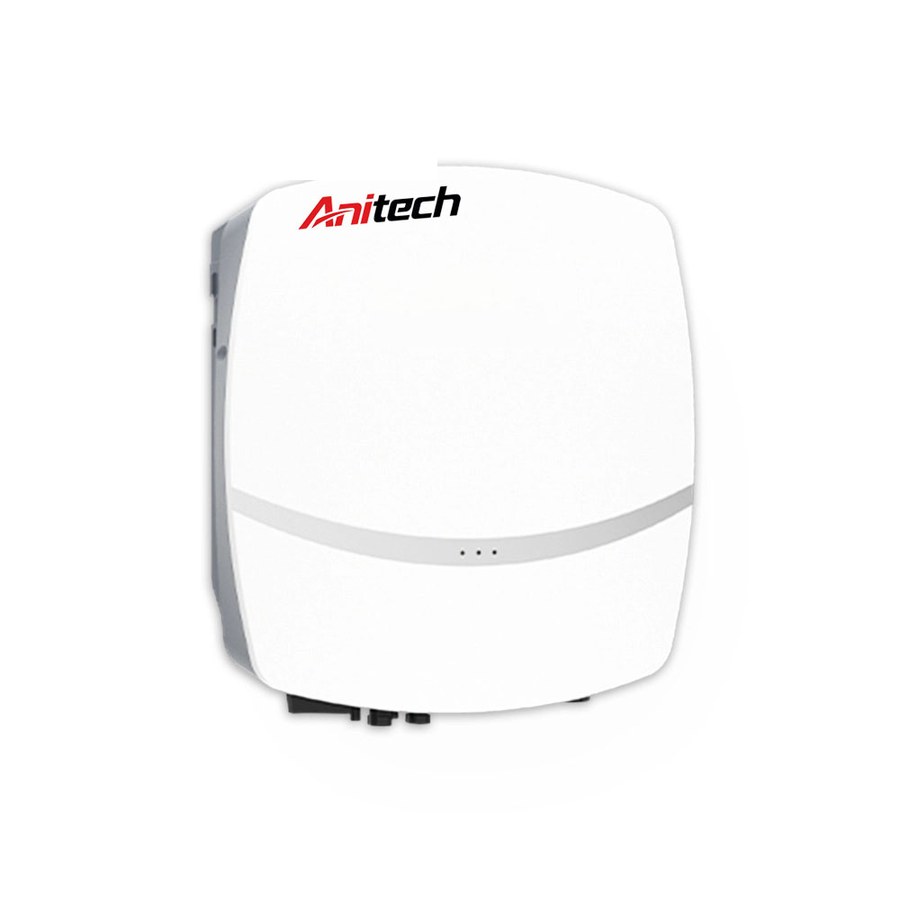

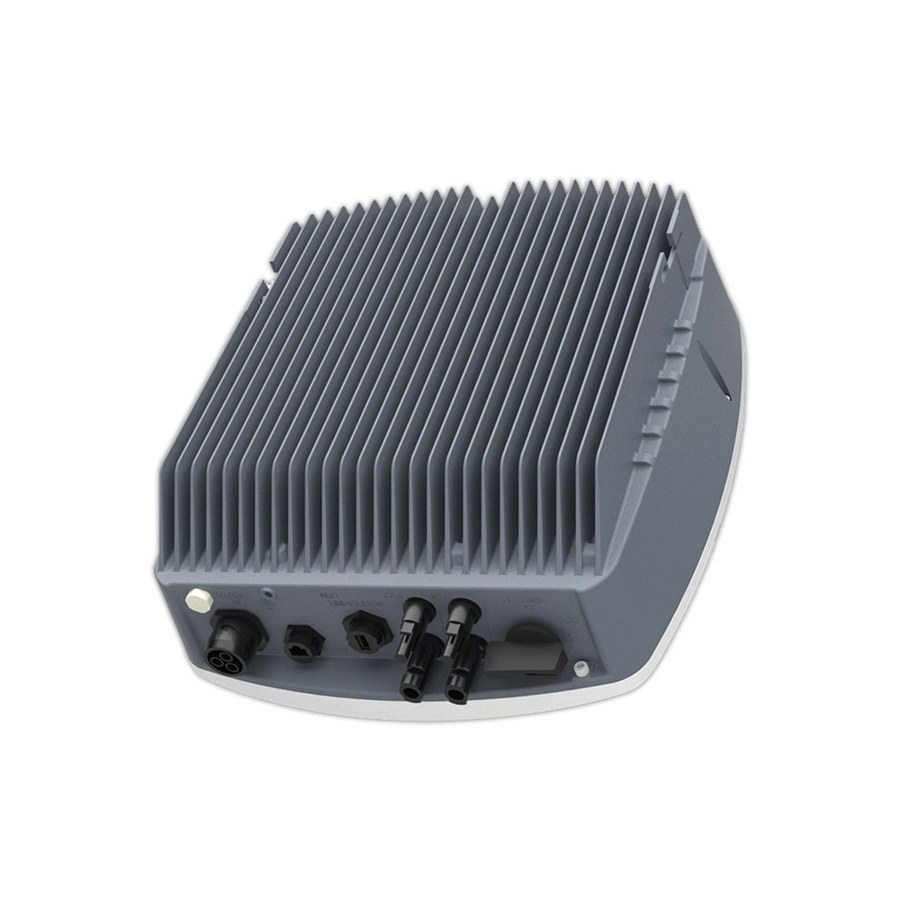

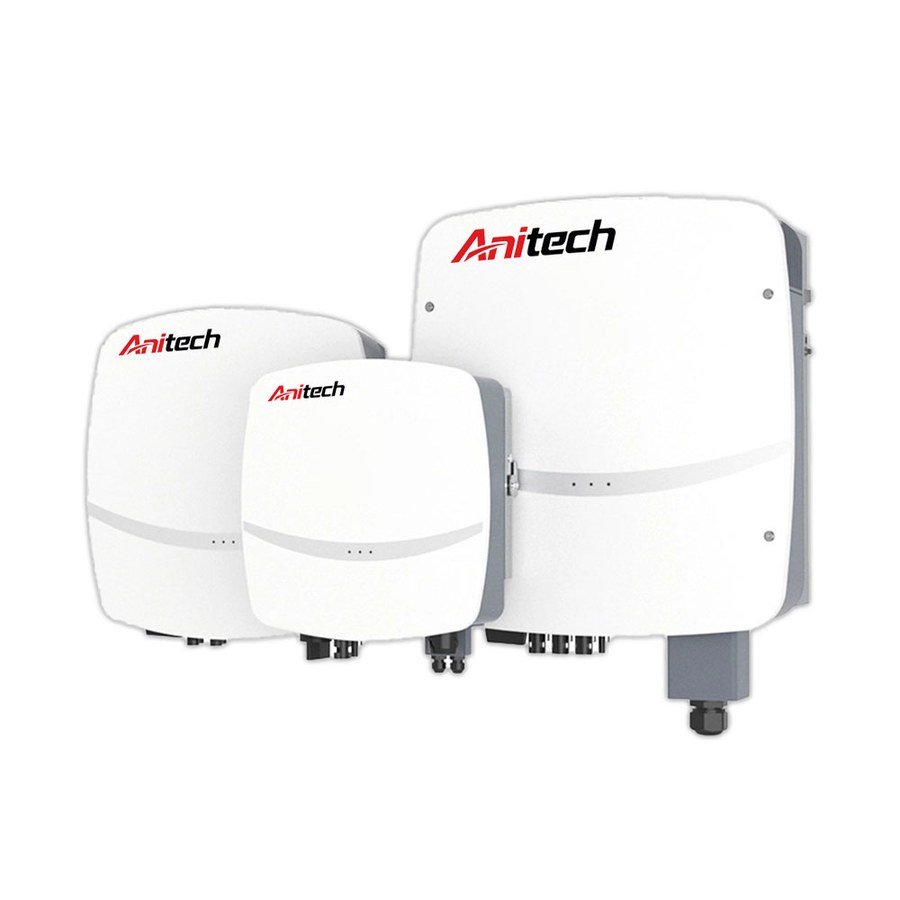

Model: AT-3000TL/AT-3600TL/AT-4000TL-/AT-5000TL/AT-6000TL
Type: On-grid inverter
Inverter Power: 3000-6000W
Output Voltage: 220-230V
Certificate: TUV, ETL, ISO, CE
We develop lithium batteries covering home storage, low-speed vehicles, industrial UAVs and portable power stations to meet multi-scenario energy demands.
Hubei Annait is a one-stop lithium battery maker offering OEM&ODM, supplying certified storage, EV, drone and portable power batteries to global clients.
| MODEL | AT-3000TL | AT-3600TL | AT-4000TL | AT-5000TL | AT-6000TL |
| DC Input | |||||
| Max.PVArray Power [Wp]@STC | 4500 | 5400 | 6000 | 7500 | 9000 |
| Max.DC Voltage [V] | 600 | ||||
| MPPT Voltage Range [V] | 90～550 | ||||
| Rated DC Voltage [V] | 360 | ||||
| Start Voltage [V] | 100 | ||||
| Min.DC Voltage [V] | 80 | ||||
| Max.DC Input Current [A] | 15/15 | ||||
| Max.DC Short Circuit Current [A] | 18/18 | ||||
| No.of Strings per MPPT | 1月1日 | ||||
| No.of MPPT | 2 | ||||
| DC Switch | Integrated | ||||
| AC Output | |||||
| Rated AC Power [W] | 3000 | 3680 | 4000 | 5000 | 6000 |
| Max.Apparent Power*'[VA] | 3300 | 1100 | 4400 | 5000 | 6000 |
| Rated Output Current [A]@230Vac | 13.1 | 16.0 | 17.4 | 21.8 | 26.1 |
| Max.Output Current [A] | 14.4 | 16.0 | 19.2 | 21.8 | 26.1 |
| Rated AC Voltage/Range [V] | L+N+PE,220,230,240/180~280 | ||||
| Rated Output Frequency/Range [Hz] | 50,60/45～55,55～65 | ||||
| Power Factor [cosφ] | 0.8 leading ~0.8 lagging | ||||
| Total Harmonic Distortion [THDi] | <3% | ||||
| Efficiency | |||||
| Max.Efficiency | 97.80% | 98.00% | 98.00% | 98.10% | 98.20% |
| Euro Efficiency | 97.20% | 97.50% | 97.50% | 97.60% | 97.60% |
| MPPT Eficiency | >99.9% | ||||
| Protection | |||||
| Internal Overvoltage Protection | Integrated | ||||
| DC Insulation Rsistance Detection | Integrated | ||||
| Grid Monitoring | Integrated | ||||
| GECI Monitoring | Integrated | ||||
| DCI Monitoring | Integrated | ||||
| AC Short Circuit Current Protection | Integrated | ||||
| AC Grounding Detection | Integrated | ||||
| DC Surge Protection | Integrated | ||||
| AC Surge Protection | Integrated | ||||
| Anti-islanding Protection | Integrated | ||||
| AFCI Protection | Integrated | ||||
| Interface | |||||
| DC Connectior | MC4/H4 | ||||
| AC Connection | Plug-in Connector | ||||
| Display | LED+APP | ||||
| Communication Por | RS232(USB)+RS485(RJ45)+DRM | ||||
| Communication | Wi-Fi/Ethernet/4G(Optional) | ||||
| General Parameters | |||||
| Topology | Non-isolated | ||||
| Consumption at Night [W] | <1 | ||||
| Operating Temperature Range | -40℃to +60℃(45℃to 60℃ with derating) | ||||
| Cooling Method | Natural Convection | ||||
| Ambient Humidity | 0-100%Non-condensing | ||||
| Altitude | 4000m(>3000m Power Derating) | ||||
| Noise [dBA] | <25 | ||||
| Ingress Protection | IP65 | ||||
| Mounting | Wall Mounting | ||||
| Dimensions [H*W*D][mm] | 389*367*143 | ||||
| Weight [kgl | 12.2 | ||||
| Warranty [Year] | 5/10/15/20 | ||||
| Applicable Standard | EN 62109-1/2,EN61000-6-1/2/3/4,EN 50438,EN 50549,C10/11,IEC 62116,IEC 61727,RD 1699,RD 413,UNE 206006,UNE 206007,NTS,CEI 0-16,CEI O-021,AS 4777.2,NBR 16149,NBR 16150 VDE-AR-N 4105,VDE 0126-1-1 | ||||

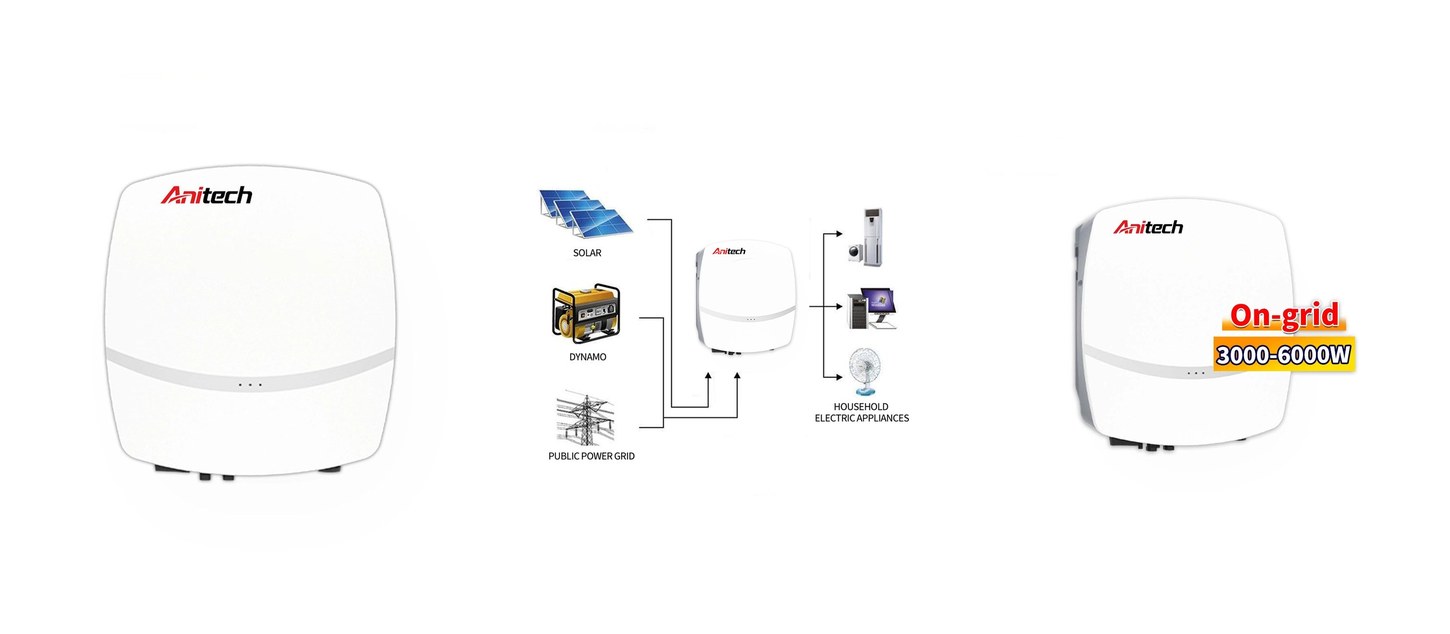

Product Details
