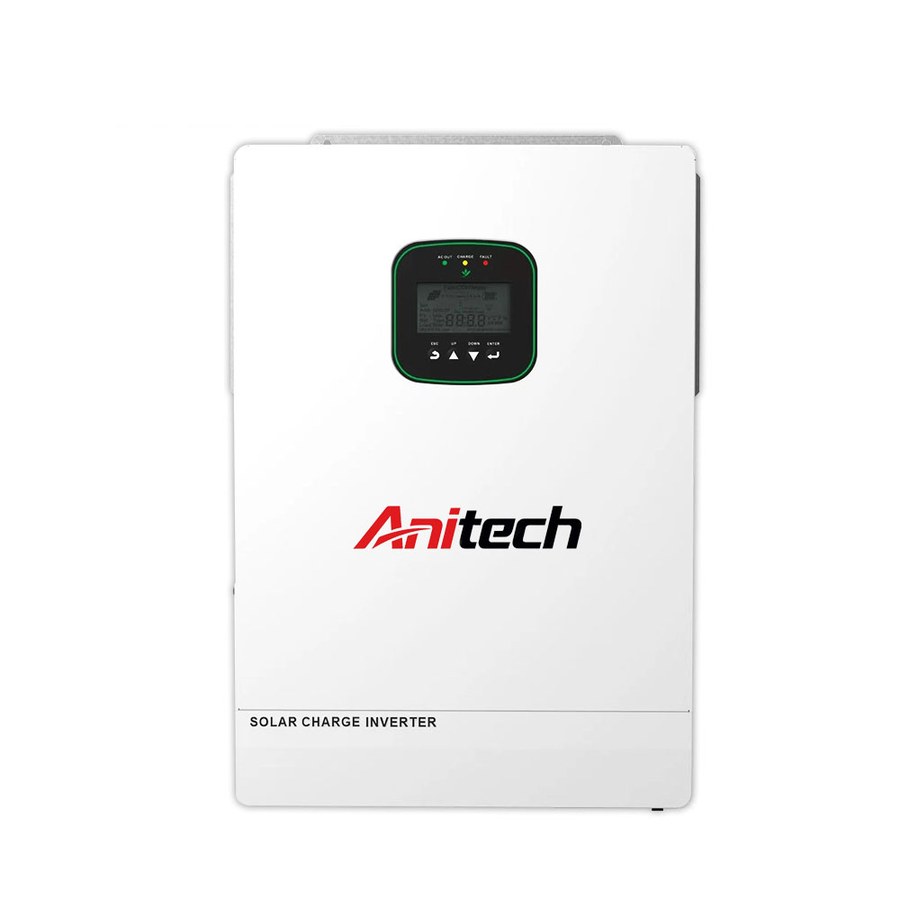

Model: AT-5600/6200TL
Battery Type: 48V
Type: Hybrid Inverter
Inverter Power: 5600-6200W
Output Voltage: 220-230V
Certificate: TUV, ETL, ISO, CE
We develop lithium batteries covering home storage, low-speed vehicles, industrial UAVs and portable power stations to meet multi-scenario energy demands.
Hubei Annait is a one-stop lithium battery maker offering OEM&ODM, supplying certified storage, EV, drone and portable power batteries to global clients.
Product Parameters
| Model | AT-5600TL | AT- 6200TL |
| PARALLEL MODE | ||
| Pemitted parallel numbe | NO/1-6 | |
| AC MODE | ||
| Rated input voltage | 220/230Vac | |
| Input voltage range | (170Vac~280Vac)±2%@UPS;(90Vac-280Vac)±2%@APL | |
| Frequency | 50Hz/60Hz(Auto detection) | |
| Frequency Range | 47±0.3Hz~55±0.3Hz(50Hz);57±0.3Hz~65±0.3Hz(60Hz) | |
| Overload/short circuit protection | Circuit breaker | |
| Efficiency | >95% | |
| Conversion time (bypass and inverter) | 10ms(typica) | |
| AC reverse protection | Yes | |
| Maximum bypass overload current | 40A | |
| INVERTER MODE | ||
| Output voltage wavefom | Pure sine wave | |
| Rated output power(VA) | 5600 | 6200 |
| Rated output power(W) | 5600 | 6200 |
| Power factor | 1 | |
| Rated output voltage(Vac) | 230Vac | |
| Output voltage eror | ±5% | |
| Output frequency range(Hz) | 50Hz±0.3Hz/60Hz±0.3Hz | |
| Maximum Efficiency | >92% | |
| Overload protection | 102% | |
| 125% | ||
| Load >150%±10%:report error and turn off the output after 5 seconds; | ||
| Peak power | 11000VA | 12000VA |
| Loaded motor capability | 3HP | 4HP |
| Output short circuit protection | Circuit breake | |
| Bypass circuit breaker specification | 40A | |
| Rated battery input voltage | 48V(Minimum starting voltage 44V) | |
| Battery voltage range | 40.0Vdc~60Vdc±0.6Vdc(Undervoltage alarm/shutdown voltage/overvoltage alarm/ | |
| overvoltage recovery…settable on LCD screen) | ||
| Power saving mode self-consumption | Load≤50W | |
| AC CHARGING | ||
| Battery type | Lead acid or lithium battery | |
| Maximum charge current(can be set) | 80A | |
| Charge current error | ±5Adc | |
| Charge voltage range | 40-60Vdc | |
| Short circuit protection | Circuit breaker and blown fuse | |
| Circuit breaker specifications | 40A | |
| PV CHARGING | ||
| Maximum PVopen circuit voltage | 500Vdc | |
| PVoperating voltage range | 120-500Vdc | |
| MPPT voltage range | 90-450Vdc | |
| Battery voltage range | 40-60Vdc | |
| Maximum PVinput power | 6000W | |
| Maximum PVinput current | 22A | |
| PV charging current range(can be set) | 0-100A | |
| Charging short circuit protection | Blown fuse | |
| Wining protection | Reverse polarity protection | |
| HYBRID CHARGING MAX CHARGER CURRENTSPECIFICATIONS(AC CHARGER+PV CHARGER) | ||
| Max charger current(can be set) | 0-100A | |
| CERTIFIED SPECIFICATIONS | ||
| Certification | CE(IEC62109-1,2) | |
| EMC certification level | EN61000,C2 | |
| Operating temperature range | -15℃~55℃ | |
| Storage temperature range | -25℃~60℃ | |
| Humidity range | 5% to 95%(Conformal coating protection) | |
| Noise | ≤60dB | |
| Heat dissipation | Forced air cooling,variable speed of fan | |
| Communication interface | USB/RS485(/WiFi/GPRS)/Dry node control | |
| Size(L*W*D) | 415mm*280mm*100mm | |
| Weight (kg) | 7.8 | |
