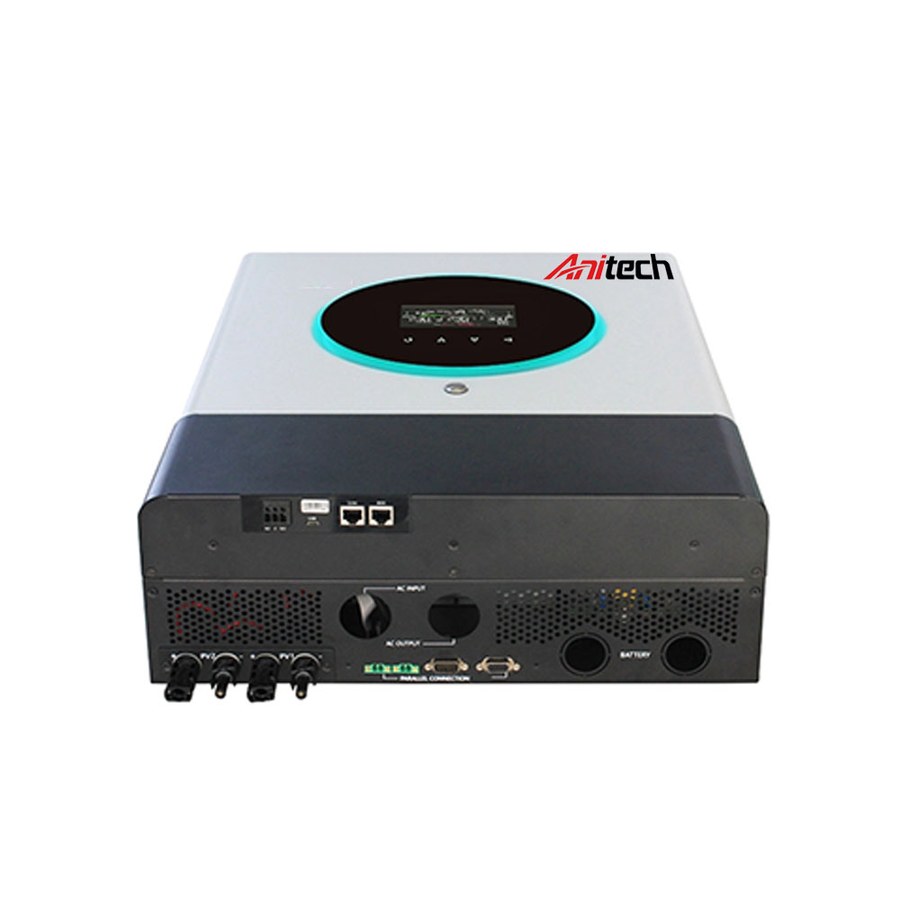

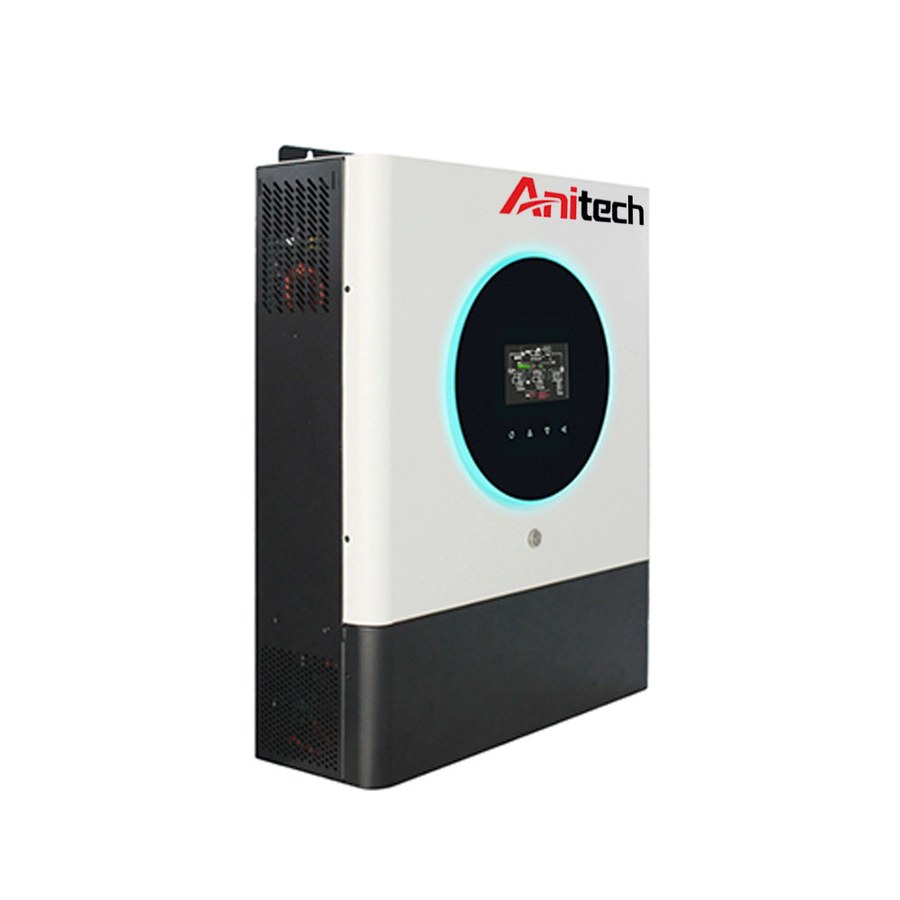

Model: AT-8000TL/AT-11000TL
Battery Type: 48V
Type: Hybrid inverter
Inverter Power: 8000-11000W
Output Voltage: 230 VAC
Certificate: TUV, ETL, ISO, CE
We develop lithium batteries covering home storage, low-speed vehicles, industrial UAVs and portable power stations to meet multi-scenario energy demands.
Hubei Annait is a one-stop lithium battery maker offering OEM&ODM, supplying certified storage, EV, drone and portable power batteries to global clients.
Product Parameters
| MODEL | AT-8000TL | AT-11000TL |
| RATED POWER | 8000VA/8000W | 11000VA/11000W |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280 VAC(For Personal Computers) | |
| 90-280 VAC (For Home Appliances) | ||
| Frequency Range | 50 Hz/60 Hz(Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt.Mode） | 230VAC±5% | |
| Surge Powe | 16000VA | 22000VA |
| Efficiency(Peak） | 93% | |
| Transfer Time | 10 ms(For Personal Computers） | |
| 20 ms (For Home Appliances） | ||
| Wavefom | Pure sine wave | |
| BATTERY | ||
| Battery Voltage | 48 VDC | 48VDC |
| Floating Charge Voltage | 54 VDC | 54VDC |
| Overcharge Protection | 66 VDC | 63VDC |
| SOLAR CHARGER &AC CHARGER | ||
| Solar Charger type | MPPT | |
| Maximum PV Array Power | 8000W | 11000W |
| MPP Range @Operating Voltage | 90～450 VDC | 90～450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC | 500 VDC |
| Maximum PV Input Current | 27AX2(LARGEST 40A) | |
| Maximum Solar Charge Current | 150A | 150A |
| Maximum AC Charge Current | 120A | 150A |
| Maximum Charge Current | 150A | 150A |
| PHYSICAL | ||
| Dimension,DxWxH(mm) | 156.4 x 503.6 x.530.8 | |
| Net Weight (kg) | 20 | 21 |
| Communication Interface | USB/RS232/RS485/WIFi/Dry-contac | |
| OPERATING ENVIRONMENT | ||
| Humidit | 5%to 95%Relative Humidity (Non-condensing) | |
| Operating Temperature | -10°℃ to 50℃ | |
| Storage Temperature | -15°℃ to 60℃ | |
| Product specifications are subject to change without further notice. | ||
Product Details
Batteries perfectly fit hybrid solar inverter household systems.
Lightweight 48V packs for low-speed transport vehicles.
Safe semi-solid cells for industrial aerial operations.
All-in-one kits for off-grid outdoor power supply.
