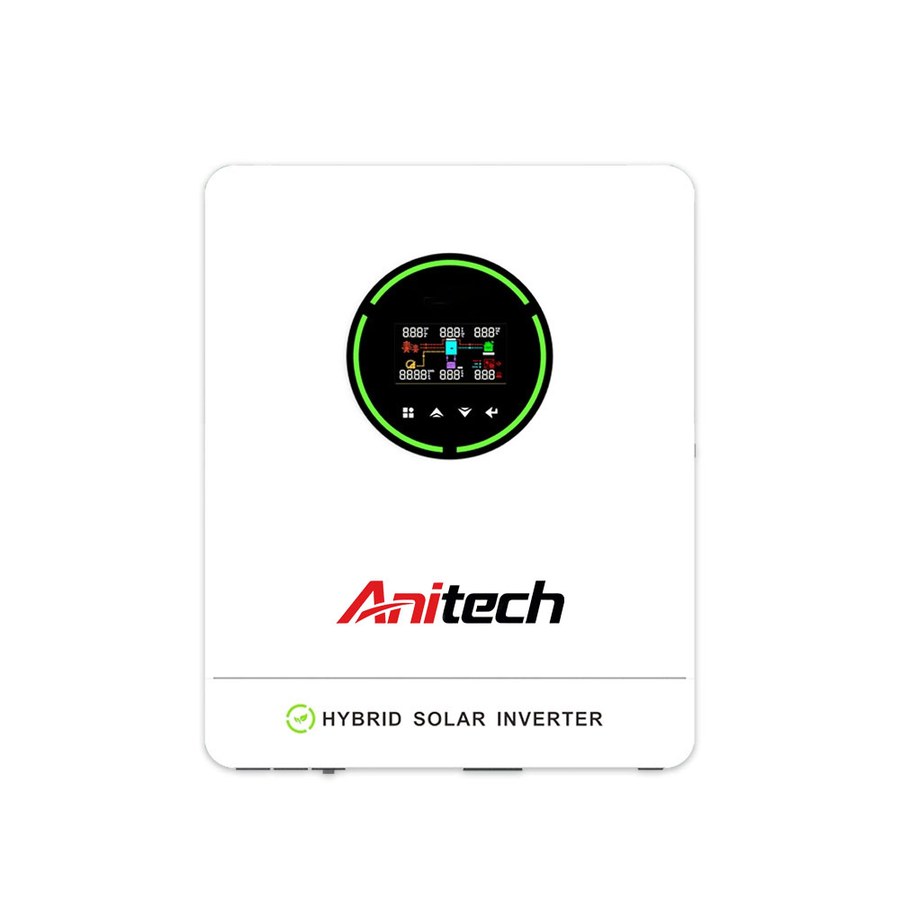

Model: AT-11000TL
Battery Type: 48V
Type: Hybrid inverter
Inverter Power: 11000W
Output Voltage: 220-230V
Certificate: TUV, ETL, ISO, CE
We develop lithium batteries covering home storage, low-speed vehicles, industrial UAVs and portable power stations to meet multi-scenario energy demands.
Hubei Annait is a one-stop lithium battery maker offering OEM&ODM, supplying certified storage, EV, drone and portable power batteries to global clients.
| Model | AT- 8000TL | AT-11000TL |
| Nominal Voltage | 220/230/240VAC | |
| Voltage Range | 90-280VAC±3V(Inverter Mode)170-280VAC±3V(UPS Mode) | |
| Frequency | 50-60Hz Auto sensin | |
| Rated Output Power | 8000W | 11000W |
| Output Voltage(AC | 220/230/240VAC±5% | |
| Output Frequency | 50/60Hz±0.1% | |
| Waveform | Pure sine wave | |
| Transfer time(AC to DC) | 10ms for Computer Equipment,20ms for Household Equipment | |
| Peak Power | 16000VA | 22000VA |
| Overlood Capacity(Battery Mode) | 21s@105%-150%load lls@150%-200%lood 400ms@>200%load | |
| Peak Efficiency(Battery Model) | 0.98 | |
| Norminal Voltage | 48VDC | |
| Constant Charging Voltage | 56.4VDC | |
| Float Charging Voltage | 54VDC | |
| PV Charging way | MPPT | |
| Max PV Input Power | 2*4000W | 2*5500W |
| MPPT Controller Voltage | 90-500VDC | |
| MAX PV Input Voltage | 500VDC | 500VDC |
| MAX PV Charge Current | 120A | 150A |
| MAX AC Charge Current | 60A | 60A |
| MAX Charge Current | 120A | 150A |
| LCD Display | AC input Voltage,AC input frequency.PV Voltage,PV Current,Output Voltage, | |
| Output Frequency,Battery Voltage,load Current,etc. | ||
| RS232 | 5PIN/Pitch2.0mm | |
| Expansion Slot Communication | 2×5PIN/Pitch2.54mm,lithium battery BMS communication card,WiFl,etc | |
| Interface | ||
| Pargllel Intertace | Yes | |
| Operating Temperature | 0-40℃ | |
| Humidity | 20%-95%(Non-condensing) | |
| Storage Temperature | 15~60°℃ | |
| Altitude | <1000m | |
| Noise(dB) | ≤50db | |
| Machine size | 571*500*148(mm) | |
| Outer packaging size | 708*570*241(mm) | |
| Net weight | 19.27kg | |
| Gross weight | 22.21kg |

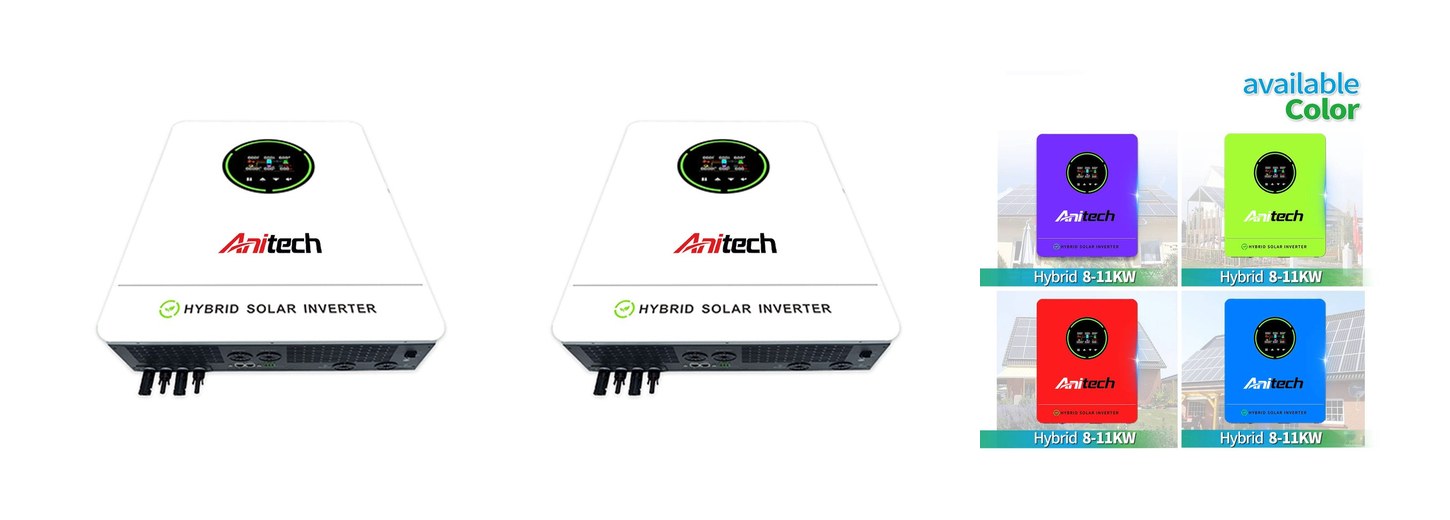

Product Details
Batteries perfectly fit hybrid solar inverter household systems.
Lightweight 48V packs for low-speed transport vehicles.
Safe semi-solid cells for industrial aerial operations.
All-in-one kits for off-grid outdoor power supply.
